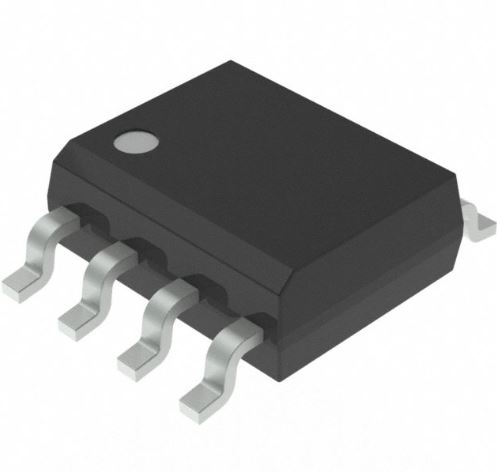

Puya Semiconductor I2C EEPROM P24C32C-SSH-MIR - ME-4000-D
₹5.50
Out of stock
The Puya Semiconductor P24C32C-SSH-MIR is a 32-Kbit (4-KB) I²C-compatible serial EEPROM designed for reliable non-volatile data storage in embedded electronic applications. It supports operating voltages from 1.7 V to 5.5 V and communication speeds up to 1 MHz.
Product Details
The Puya Semiconductor P24C32C-SSH-MIR is an I²C-compatible serial EEPROM featuring 32 Kbits (4 KB) of non-volatile memory, organized into 32-byte pages. It supports sequential and random read operations, partial page writes, and write protection for the memory array. Additional features include a lockable identification page and a 128-bit unique serial number for configuration and identification data storage.
Key Features:
Memory capacity: 32 Kbit (4 KB)
I²C-compatible serial interface
Operating voltage: 1.7 V to 5.5 V
Maximum clock frequency: 1 MHz
Page size: 32 bytes
Sequential and random read support
Partial page write support
Write protection for the memory array
Additional write-lockable identification page
128-bit unique serial number
Endurance: 1 million write cycles
Data retention: up to 100 years
Operating temperature range: -40°C to +125°C
Applications:
Configuration and parameter storage
Embedded systems
Industrial electronics
Consumer electronic devices
Calibration data storage
Device identification and tracking
