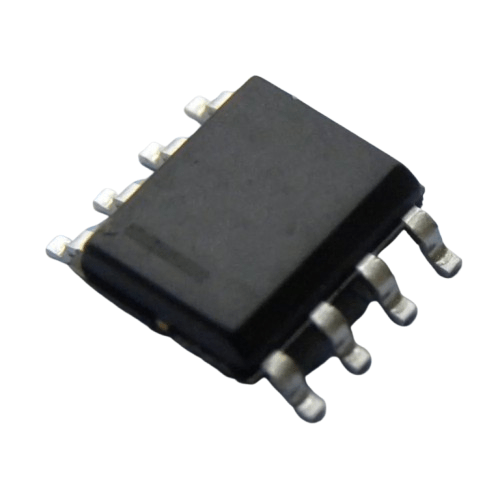

Puya Semiconductor I2C-EEPROM P24C02A-STH-MIR - ME-3986-D

The Puya Semiconductor P24C02A is a 2-Kbit I²C-compatible serial EEPROM designed for storing configuration settings, calibration values, and other data in electronic systems. It provides a 256 × 8-bit memory array, page-write functionality, and hardware write protection for reliable data storage. Its wide operating voltage range supports integration into various embedded and electronic applications.

Key Features

• Memory capacity: 2 Kbits (256 bytes)
• I²C-compatible serial interface
• Operating voltage: 1.7V to 5.5V
• Maximum clock frequency: 1MHz
• 256 × 8-bit memory array
• Page-write and partial-page-write support
• Hardware write protection
• Noise suppression functionality
• Write endurance: up to 1 million cycles
• Data retention: up to 100 years
• Operating temperature: -40°C to +85°C for the specified ordering grade

Applications

• Embedded systems and microcontrollers
• Industrial control equipment
• Consumer electronics
• Configuration and calibration data storage
• Electronic instruments
• Device settings and parameter storage
