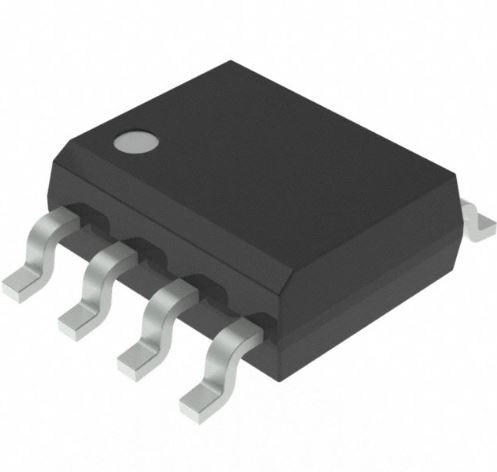

Puya Semiconductor Flash Memory PY25Q32LB-SUH-IR - ME-4069-D
₹14.00
SPQ: 4000, MOQ:1, Product Package: SOP-8
SPQ
4000 MOQ
1 Visible Manufacture Name
Puya Semiconductor Visible Manufacturer’s code
PY25Q32LB-SUH-IR Brand/MFR No
Puya Semiconductor/PY25Q32LB-SUH-IRStock Available
25 Choose Quantity
Product Details
The PY25Q32LB is a serial interface Flash memory device designed for use in a wide variety of high-volume consumer-based applications in which program code is shadowed from Flash memory into embedded or external RAM for execution. The flexible erase architecture of the device, with its page erase granularity it is ideal for data storage as well, eliminating the need for additional data storage devices. The device also contains an additional 3*1024-byte security registers with OTP lock (One-Time Programmable), can be used for purposes such as unique device serialization, system-level Electronic Serial Number (ESN) storage, locked key storage, etc. Specifically designed for use in many different systems, the device supports read, program, and erase operations with a wide supply voltage range of 1.65V to 2.0V. No separate voltage is required for programming and erasing.
Flash Memory PY25Q32LB-SUH-IR Features:-
- Single 1.65 to 2.0V supply
- Industrial Temperature Range -40C to 85C
- Serial Peripheral Interface (SPI) Compatible: Mode 0 and Mode 3
- Single, Dual, Quad SPI, QPI, DTR - Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD# - Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD# - Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3 - QPI: SCLK, CS#, IO0, IO1, IO2, IO3 - DTR: Double Transfer Rate Read
- Flexible Architecture for Code and Data Storage - Uniform 256-byte Page Program - Uniform 4K-byte Sector Erase - Uniform 32K/64K-byte Block Erase - Full Chip Erase
- Hardware Controlled Locking of Protected Sectors by WP# Pin
- One Time Programmable (OTP) Security Register - 3*1024-Byte Security Registers with OTP Lock
- 128-bit Unique ID for each device
