Nuvoton M487KIDAE

M487KIDAE - DE-1856-D

₹513.00

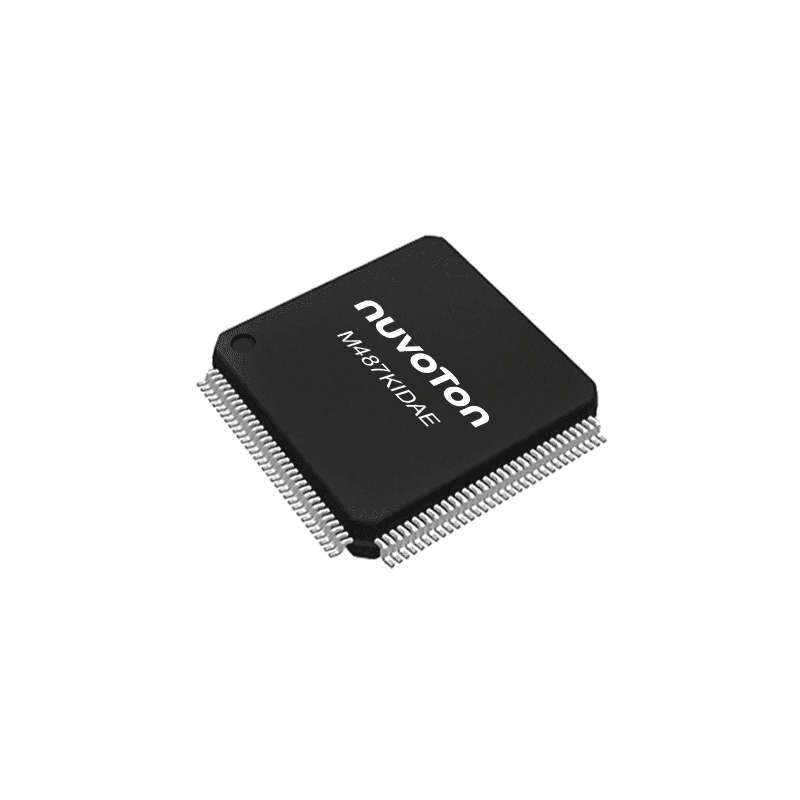

Microcontroller IC Nuvoton M487KIDAE 32BIT, 128LQFP
SKU
DE-1856-D
SPQ
1
MOQ
1
Visible Manufacture Name
Nuvoton Technology Corporation
Visible Manufacturer’s code
Nuvoton M487KIDAE
Brand/MFR No
Nuvoton/M487KIDAE
Quantity
Add to Cart
Product Details

The M487KIDAE is a high performance, low power microcontroller powered by the Arm Cortex-M4F core with DSP extension. Nuvoton M487 can run up to 192 MHz with 175 µA/ MHz dynamic low power consumption. The 512 KB embedded dual bank Flash memory supports OTA ( Over-The-Air ) firmware upgrade, and the 160 KB embedded SRAM includes 32 KB cache to speed up external SPI Flash code execution.

Get the high-quality Nuvoton M487 Microcontroller at the best price in India.

 The factory pre-loaded bootloader delivers Secure Boot functionality to provide the code integrity check in embedded Flash memory  product life-cycle management. The Arm M4f supports operating voltage from 1.8V to 3.6V, and industrial operating temperature from - 40°C to 105°C. It is equipped with 10/100 Mbps Ethernet MAC with RMII and hardware cryptography engine. Package type is LQFP128.

Target Application of Nuvoton M487 :-

  • Industrial IoT
  • Smart Home
  • IoT Gateway
  • Serial-to-Ethernet Converter

Key Features of Arm Cortex M4f:-

Core

  • Up to 192 MHz Arm® Cortex ®-M4F delivering 1.25 DMIPS per MHz
  • DSP instruction set
  • Memory Protection Unit ( MPU )

    Memory

    • 512 KB zero-wait state Flash memory
    • 160 KB RAM, including 32 KB external SPI Flash cache
    • 4 KB Secure Protection ROM
    • 2 KB One-Time-Programmable ROM

    Cyclic Redundancy Calculation Unit:

    16-ch Peripheral DMA Controller

    External Bus Interface:

    • LCD parallel interface, i80 mode

    Clocks:

    • 4 to 24 MHz crystal oscillator
    • 32 kHz oscillator for RTC
    • Internal 12 MHz RC oscillator
    • Internal 10 kHz RC oscillator
    • Internal PLL up to 480 MHz

     RTC:

    • 80 bytes of battery-powered backup registers

    Timer & PWM:

    • Four 32-bit timers
    • Twelve Enhanced PWM with twelve 16-bit timers
    • Twelve Basic PWM with two 16-bit timers
    • One 24-bit count-down SysTick timer
    • One watchdog timer
    • One window watchdog timer

    Cryptography Accelerator:

    • ECC ( P-521, B-571, K-571 )
    • AES-128, 192, 256
    • DES/ 3DES
    • SHA-160, 224, 256, 384, 512
    • HMAC
    • Random number generator

    Analog Peripheral:

    • One 12-bit, up to 16-ch 5MSPS SAR ADC
    • Two 12-bit, 1 MSPS DAC
    • Two rail-to-rail comparators
    • Three operational amplifiers

    Communication Interface:

    • Up to 6 low power UART interfaces ( 17 Mbps ) , including 2 LIN interfaces
    • Up to 3 ISO-7816 interfaces ( 3.4 MHz ) , supporting full duplex UART mode
    • Three I²C interfaces ( Up to 3.4 Mbps )
    • One SPI Flash interface ( Up to 96 MHz ) supports quad mode
    • One Quad- SPI interface ( Up to 96 MHz )
    • Up to 4 SPI / I²S interfaces ( SPI up to 96 MHz , I²S up to 192 kHz/16-bit )
    • One I²S interface ( 192 kHz/32-bit )
    • Two USCI interfaces, supporting configurable UART / SPI / I²C
    • Two CAN 2.0B interfaces
    • Two Secure Digital Host Controllers ( 50 MHz )

    Control Interface

    • Two quadrature encoder interfaces
    • Two 24-bit, 3-ch input capture timer/counter units

    Advanced Connectivity

    • USB 2.0 high speed device/ host/ OTG controller with on-chip PHY
    • USB 2.0 full speed device/ host/ OTG controller with on-chip PHY
    • 10/100 Mbps Ethernet MAC with RMII

    Operating Characteristic

    • Voltage range: 1.8V to 3.6V
    • Temperature range: - 40°C to +105°C

    To know more about all latest Products of Microcontroller and Development Boards you can visit at  www.campuscomponent.com
