Product Details

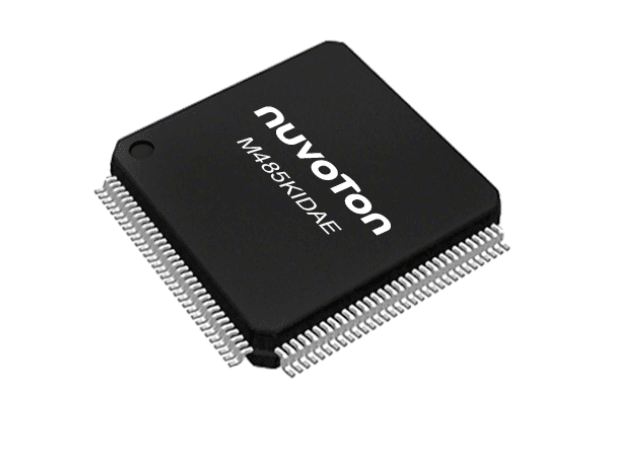

The M485KIDAE is a high performance, low power microcontroller powered by the Arm® Cortex®-M4F core with DSP extension. It can run up to 192 MHz with 175 µA/ MHz dynamic low power consumption. The 512 KB embedded dual bank Flash memory supports OTA ( Over-The-Air ) firmware upgrade, and the 160 KB embedded SRAM includes 32 KB cache to speed up external SPI Flash code execution. The factory pre-loaded bootloader delivers Secure Boot functionality to provide the code integrity check in embedded Flash memory. The built-in Secure Protection ROM provides a safe space for saving confidential program or data. One-Time Programmable ROM is also included for product life-cycle management.
Applications of M485KIDAE :-
- Fingerprint Module
- Smart payment
- Secure IoT device
- secure USB Device
Specifications:-
- Arm® Cortex® -M4F core, running up to 192 MHz
- Built-in Memory Protection Unit (MPU)
- Built-in Nested Vectored Interrupt Controller (NVIC)
- Hardware IEEE 754 compliant Floating-point Unit (FPU)
- DSP extension with hardware divider and single-cycle 32-bit hardware multiplier
- 24-bit system tick timer
