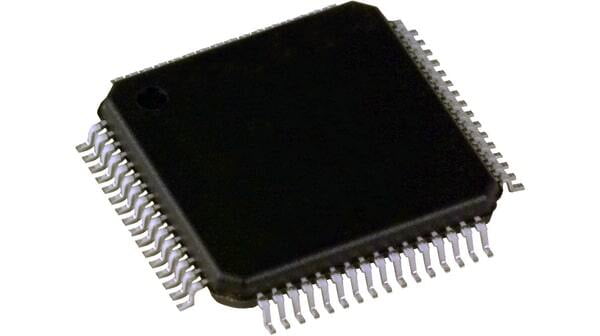

Mindmotion MM32F5277E7PV - IC-3354-D
₹361.00
Out of stock
SPQ: 1600, MOQ:1, Product Package: LQFP-64
Product Details
Get the high-quality Mindmotion MM32F5277E7PV at the best price in India.
The MM32F5270 microcontrollers are based on Arm China STAR-MC1 core. These devices have a maximum clocked frequency of 120MHz, built-in 256KB Flash storage, 192KB SRAM, and contain an extensive range of peripherals and I/O ports. These devices contain two 3MSPS 12-bit ADC, two 12-bit DAC, three analog comparators, two 16-bit advanced timers, two 16-bit and two 32-bit general purpose timers, two 16-bit basic timers and one low power timer, one QSPI and FSMC interface for memory expansion, as well as communication interfaces including two I2C, three SPI or I2S, seven UART, one low power UART, one Ethernet 10/100M controller, one USBFS 2.0 OTG controller with
integrated PHY, and two FlexCAN interface.
Core and system
- Frequency up to 120MHz.
- 32-bit STAR-MC1 CPU, leveraging Armv8-M mainline ISA, with built-in single-precision FPU and DSP.
- 4KB L1 instruction cache (I-Cache) and 4KB L1 data cache (D-Cache).
Memory
- Up to 256KB embedded Flash storage.
- Up to 192KB SRAM, include 32KB ITCM, 32KB DTCM and 128KB system RAM.
- Embedded Bootloader to support In-System-Programming (ISP).
Communication interfaces:
- Seven UART.
- One low power UART.
- Two I2C.
- Three SPI (support I2S mode).
