NLN500 LoRa Module - WI-2588-D
₹1,050.00
Visible Manufacturer’s code
NLN500Stock Available
6 Choose Quantity
Product Details

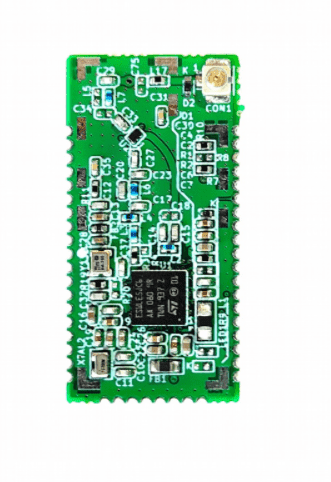

The NebuLink Node NLN500a is First and Smallest STM32WL Based LoRa Module. LoRa Module is build on the STM32WL SoC which has Embedded LoRa WAN Transceiver for wide range of Smart Applications. It is useful when long range is required as it operates at 868 MHz & 915 MHz Band and uses Lo–Ra(Long-Range) Protocol for communication. It offers long range, low power and secure data transmission for M2M and IoT applications. These Module designed to be extremely low-power and is based on the high-performance STM32WLE5JC Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 48 MHz. This core implements a full set of DSP instructions and an independent memory protection unit (MPU) that enhances the application security.
Get the high-quality LoRa Module Module at the best price in India.
LoRa Module Key Features:-
- Frequency Band: Supports EU863-870, US902-928, IN865
- RX sensitivity: –122 dBm (125 kHz BW and spreading factor 7) and –136 dBm (125 kHz BW and spreading factor 12) for LoRa
- Transmitter high output power programmable up to +21 dBm
- 1.8V to 3.6 V power supply • -20°C to +75 °C operating temperature range
- Core: 32-bit Arm®Cortex®-M4 CPU
- Hardware encryption AES 256-bit
- OTA(over-the-air) firmware update capable
- Up to 256-Kbyte Flash memory
- Up to 64-Kbyte RAM
- Serial-wire debug (SWD), JTAG for the application processor
- Up to 43 I/Os, most 5 V-tolerant available on Edge Plated holes of the module
- The Module can be directly soldered on any device board
- RF shield on the module for preventing the module from external electromagnetic radiation and interference
To know more about all latest Products of Lora Wireless Module you can visit at www.campuscomponent.com
