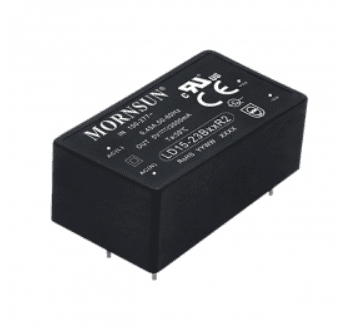

LD15-23B15R2 : 15W,15V PCB Mountable-Isolated AC-DC Converter - PO-1761-D
Visible Manufacture NameMORNSUN GUANGZHOU SCIENCE & TECHNOLOGY CO., LTD.
Visible Manufacturer’s codeLD15-23B15R2
LD15-23BxxR2 series AC-DC converters is one of Mornsun’s new generation compact size power converter. It features ultra-wide AC input and at the same time accepts DC input voltage, low power consumption, low ripple & noise, high efficiency, high reliability, reinforce disolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368/EN60335/ EN61558/IEC/EN60601-1/ANSI/AAMI ES60601-1 standards. The converters are widely used in industrial, power, medical treatment, home appliances, instrumentation, communication and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.
Get the high-quality LD15-23B15R2 : 15W,15V AC-DC Converter at the best price in India.
LD15-23B15R2 : 15W,15V Specifications:
- Ultra-wide 85 - 305VAC and 100 - 430VDCinput voltage range
- Operating ambient temperature range: -40℃to+85℃
- Up to 86% efficiency
- No-load power consumption < 0.1W
- 5000m altitude application
- OVCⅢ (meet EN61558-1)
- EMI performance meets CISPR32/EN55032 CLASSB, EN55014
