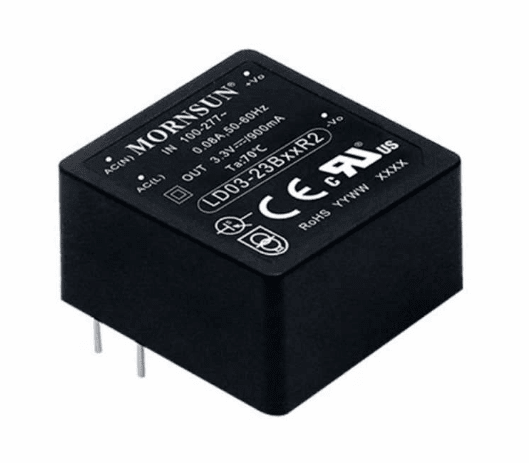

Mornusn Power supply LD03-23B15R2 : 3W,15V Isolated AC-DC Converter - PO-1743-D
Non-returnable
₹300.00
Product Details
Get the high-quality LD03-23B15R2 : 3W,15V PCB Mountable-Isolated AC-DC Converter at the best price in India.
LD03-23BxxR2 series AC-DC converters is one of Mornsun’s compact size power converter. It features ultra-wide AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368/EN60335/EN61558 standards. The converters are widely used in industrial, power, home appliances, instrumentation, communication and civil applications.
LD03-23B15R2 : 3W,15V PCB Mountable-Isolated AC-DC Converter Features:-
- Ultra-wide 85 - 305 VAC and 100 - 430 VDC input voltage range.
- 1 × 1 inch compact size
- Operating ambient temperature range: -40℃ to +85℃
- Up to 79% efficiency
- No-load power consumption 0.1W
- 5000m altitude application
- Plastic case meets UL94V-0 flammability
- EMI performance meets CISPR32/EN55032 CLASS B, EN55014
- IEC/EN/UL62368/EN60335/EN61558 safety approval CB
LD03-23B15R2 : 3W,15V PCB Mountable-Isolated AC-DC Converter Specifications:-
- Case Material Black plastic, flame-retardant and heat-resistant (UL94V-0)
- Dimension Horizontal package : 25.40 x 25.40 x 17.60 mm
- A2S mounting : 76.00 x 31.50 x 26.40 mm
- A4S mounting 76.00 x 31.50 x 31.00 mm
- Weight Horizontal package : 3.3V/5V/9V/12V 18.0g (Typ.)
- A2S mounting 38.0g (Typ.)
- A4S mounting 58.0g (Typ.)
- Cooling method : Free air convection
