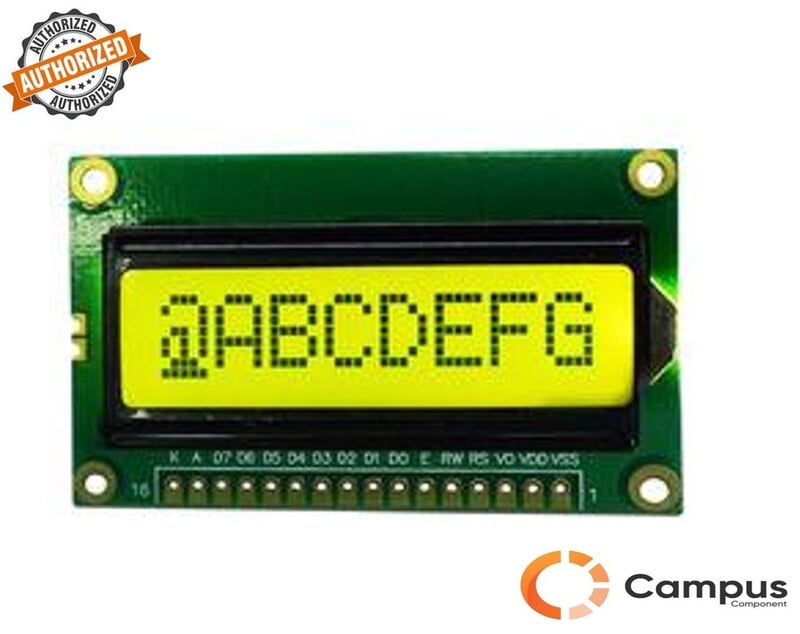

8x1 (S) COB Yellow Green Backlight - LC-1819-D
₹120.00
Out of stock
Product Details
Character 8x1 LCD module is a monochromatic character LCD module with 8 characters x 1 lines, built-in SPLC780C controller (fully compatible with the commonly used controller HD44780 in the industry), 6800 4-bit/8-bit parallel interface, 3.3V or 5V selectable voltage, white LED backlight, the brightness can be adjusted by the resistance behind the board, the white background is blue after lighting, and the working temperature is from minus 20 degrees to 70 degrees above zero.
Get the high-quality 8x1 (S) COB Yellow Green Backlight at the best price in India.
8x1 (S) COB Yellow Green Backlight Features:-
- LCD Type: 8 characters, 1 line
- Interface: 4 bit /8 bit Parallel
- Driver IC : ST7066U
- Connector: Pin Header
- IC Package: COB
- Display Type: FSTN/STN yellow green backlight
- Viewing Direction : 6 O'clock
- Power Supply : 5V
- Operating Temp : -20c to +70C
- Storage Temp : -30 to +80C
8x1 (S) COB Yellow Green Backlight Specifications:-
- Outline Dimension(mm):- 8 × 1
- Viewing Area(mm）:- SDCB0801-01
- Color available:- 84.00 × 44.00 × 13.50
- IC:- 62.00 × 17.80
- IC Package:- Blue, Yellow-green, Grey
- Interface:- AIP31066 or Eqv
- Datasheet Download:- Given below
To know more about all latest Products of LCD/LED Display you can visit at www.campuscomponent.com
Attachment:-
