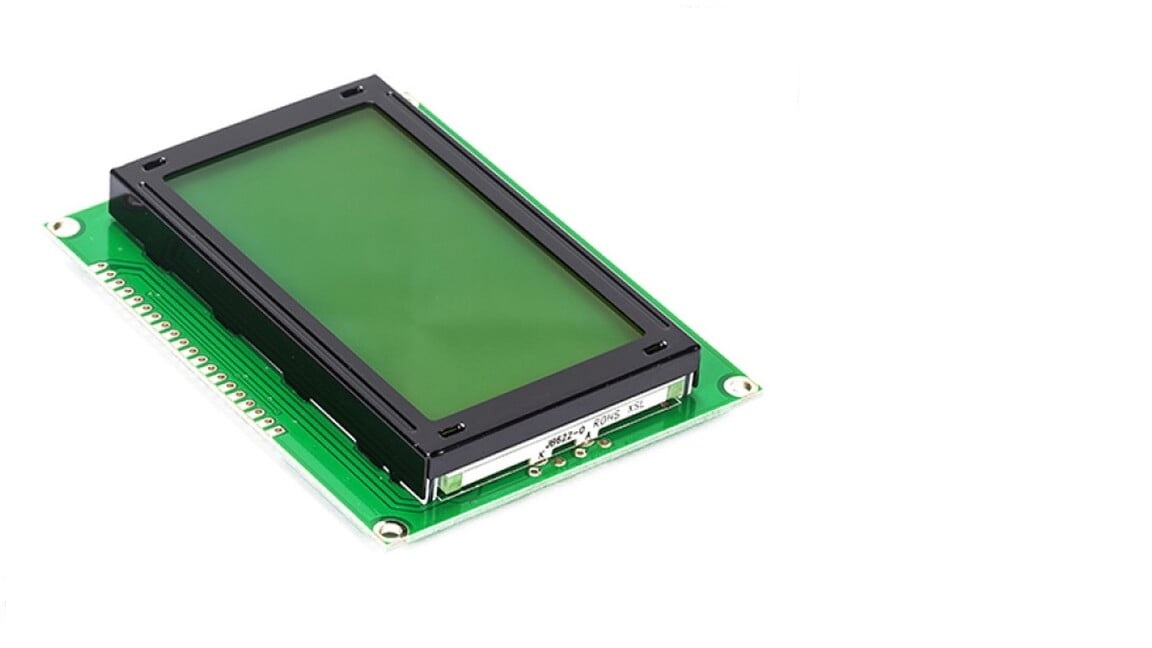

128x64 (S) LCD Yellow Green Backlight-LC-543-D

• SDGB12864-02 SERIES TYPE
• SDGB12864-02A STN-Blue Negative Transmissive Mode
• Viewing Direction : 6 O’clock
• Driving Scheme : 1/64 Duty, 1/9 Bias
• Power Supply for logic : 3.3V
• Backlight Color : White
• Display Content : 128*64 Dots
• VLCD : 9.0V
• Operation temperature : -20℃ to +70℃
• Storage temperature : -30℃ to +80℃

 2. MECHANICAL DESIGN :

• Module Size : 93.00(L)*70.00 (W)*12.50(H)mm
• Viewing Area : 72.00(L)mm*39.00 (W)mm
• Active Area : 66.52(L)mm*33.24(W)mm
• Dot Pitch : 0.52 (W)mm*0.52 (H)mm
• Dot Size : 0.48(W)mm*0.48 (H)mm
• Dot Gap : 0.04 mm

3. ATTACHMENT :

128x64 (S) LCD Yellow Green Backlight- Datasheet
