Visible Manufacture NameNuvoton
Visible Manufacturer’s codeNK-ML51PC

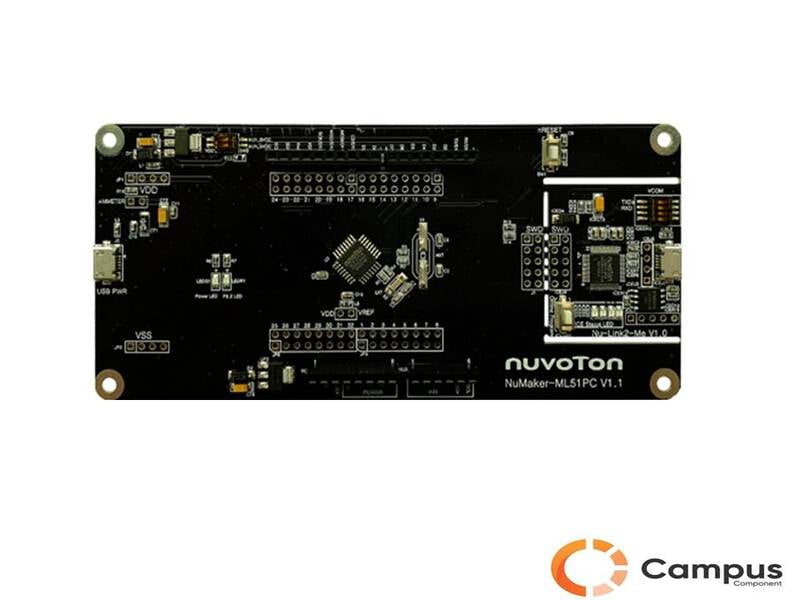

The NuMaker-ML51PC consists of two parts, a ML51 platform and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-ML51PC allows users to quickly develop and easily program and debug application. The NuMaker-ML51PC offers ML51PC0AE full pins extension connectors, Arduino UNO compatible extension connectors and diversified power supply option. It is an easy-to-develop platform for user to expand the functionality and build the applications. The NuMaker-ML51PC also provides an ammeter connector, allows user to monitor the microcontroller’s power consumption during development. The Nu-Link2-Me is a debugger and programmer that support on-line programming and debugging through OCD interface. The on-board 16 Mbit SPI Flash allows it able to off-line programming the target microcontroller. Nu-Link2-Me provides virtual COM port (VCOM) function to print out messages on PC. Nu-Link2-Me can be separated from NuMaker-ML51PC, allowing user to use as a mass production programming tool.
