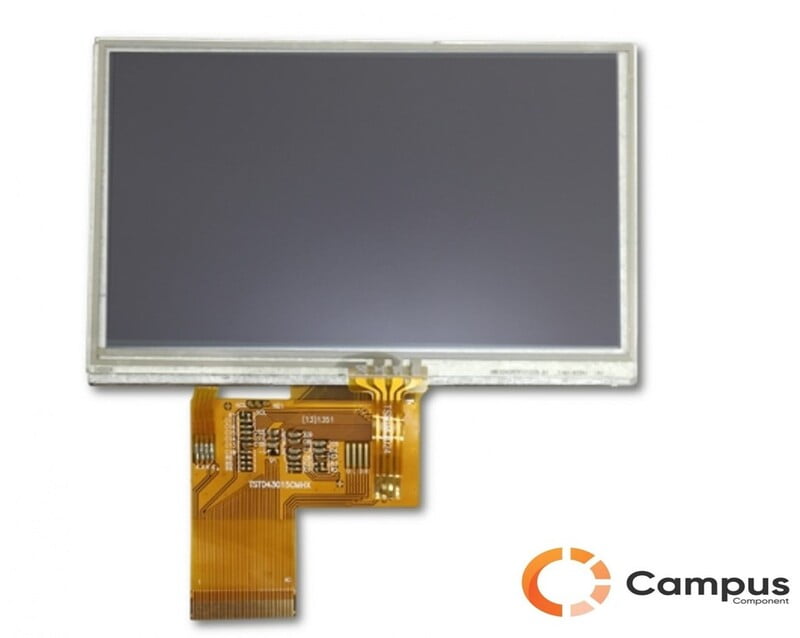

4.3 Inch (S) TFT Display Resistive Touch-LC-546-D
Non-returnable
₹1,245.00
SKU
LC-546-D SPQ
150 MOQ
1 Visible Manufacture Name
SINDA Visible Manufacturer’s code
SDT04302RT-A40 Weight (gm)
0.09kgStock Available
1059 Choose Quantity
Product Details
4.3 Inch (S) TFT Display Resistive Touch Features:-
- Suitable for use in Multimedia Player products.
- Adopts one backlight with High brightness 10-lamps white LED.
- Construction: 4.3〞а-Si color TFT-LCD ,White LED backlight and FPC.
- LCD: 2.1 Amorphous-TFT 4.3-inch display, transmissive, normally white type.
- 480(RGB)×272 dots Matrix.
- Narrow-contact ledge technique.
- LCD Driver IC: OTA5180A×
- Low cross talk by frame rate modulation.
- 262K Color ,24bit RGB interface.
- Video signal interface: Parallel RGB .
- Dimensional outline : 105.6(W) ×67.3(H)×2.85(T) mm
- Luminance for LCD 280 cd/㎡ VA 98.48(W) x 57.09(H) mm
- Active area : 95.04(W) ×53.86 (H) mm
- Pixel size : 198(W) ×198(H) um
- Resolution : 480(RGB) × 272 pixel
Get the high-quality 4.3 Inch (S) TFT Display Resistive Touch at the best price in India.
Attachment:-
4.3 Inch (S) TFT Display Resistive Touch-Datasheet
