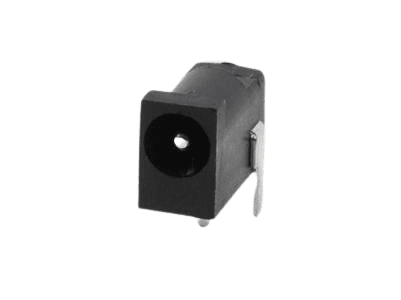

DC Power Jack - CO-1904-D
₹2.50
SPQ
200 MOQ
1 Visible Manufacture Name
KLS Electronics Visible Manufacturer’s code
KLS1-DC-002A Weight (gm)
0.000545Stock Available
9666 Choose Quantity
Product Details
DC Power Jack Technical parameters:-
- Contact resistance: 0.03Ω, max
- Insulation resistance: 100MΩ, min
- Pressure: AC500V (50Hz) / 1minute
- Rated Load: DC 16V 2.0A Max
- Actuating Force: 3~20N
- Life: 5000 times
- Operating Temperature: -30ºC ~ 70ºC
DC Power Jack Material:-
- Centre Pin : Copper
- Terminal 1 : Brass
- Terminal 2 : Copper alloy
- Terminal 3 : Brass
- Housing : PBT
- Cover : PBT
To know more about all latest Products of DC Connector you can visit at www.campuscomponent.com
