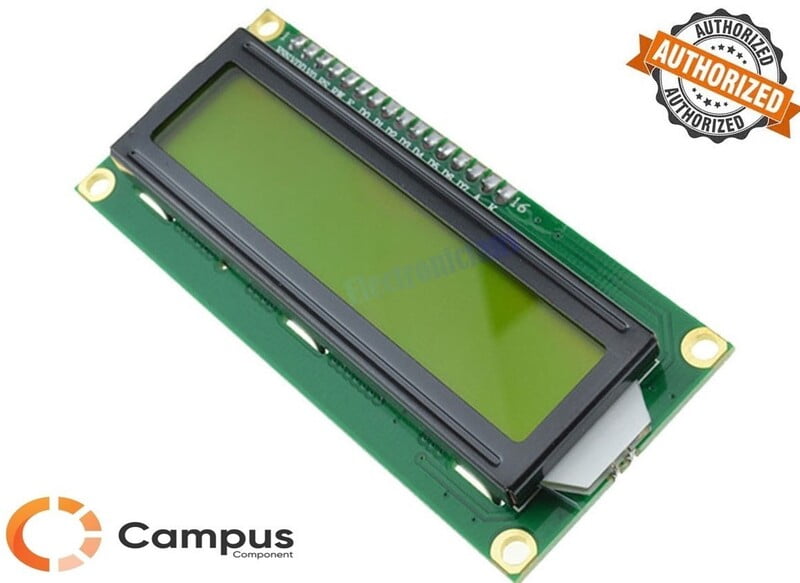

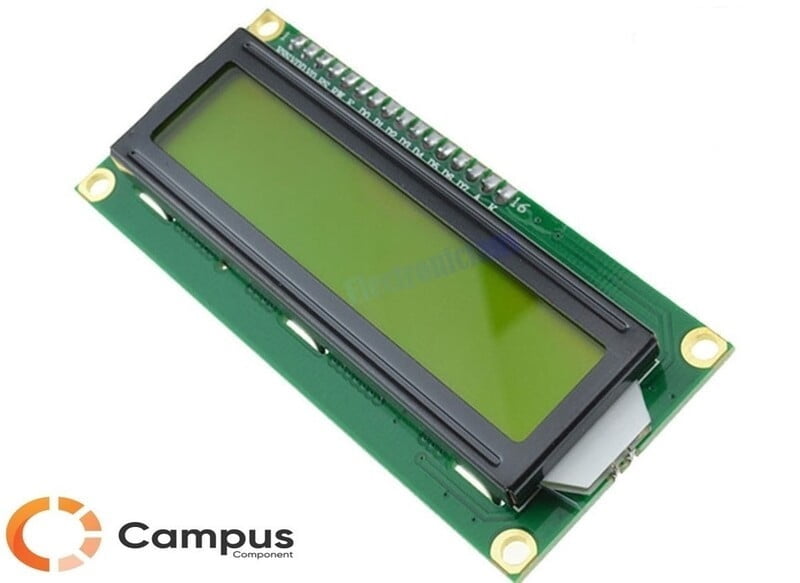

16x2 (S) Jumbo Character LCD Yellow Green Backlight -LC-539-D
Non-returnable
₹320.00
SKU
LC-539-D SPQ
256 MOQ
1 Visible Manufacture Name
SINDA Visible Manufacturer’s code
SDCB1602-10A Weight (gm)
0.0875Stock Available
549 Choose Quantity
Product Details
This Display is professional Monochrome LCD display for Industry application, include digital panel meter, UPS, inverter, multi-function meter, POS machines, Fuel Dispenser, Oil Dispenser, Gas Dispenser, Flow Meter, KWH Meter, Energy Meter, Water Meter, Gas Meter, Smart Meter, Clock. Our Character LCD Module 16*2 has various different models on shelf and accept custom develop to meet your special requirement. We can develop different interface like I2C, Serial, and we also have different font available.
Get the high-quality 16x2 (S) Jumbo Character LCD Yellow Green Backlight at the best price in India.
16x2 (S) Jumbo Character LCD Features:-
- SDCB1602-10 Series LCD
- Display Contents :16 * 2 Characters (5*8 dots )
- Driving Scheme :1/16Duty; 1/5Bias
- Viewing Direction : 6 0’ clock
- Driver IC : AIP31066
- Interface : Parallel
- Backlight : Yellow-Green
- Operating Temperature :-20 －﹢70 ℃
- Storage Temperature :-30 －﹢80 ℃
- RoHS Compliant
16x2 (S) Jumbo Character LCD Specifications:-
- Outline Dimensions : 122.00(W) x 44.00(L) x 14.00(H)(mm)
- Viewing Area : 99.00 (W) x 24.00(L)(mm)
- Active Area : 94.80 (W) x 19.90 (L)(mm)
- Character Size : 4.80 (W) x 7.95 (L)(mm)
- Character Pitch : 6.00 (W) x 8.55 (L)(mm)
- Dot Size : 0.88 (W) x 1.05 (L)(mm)
- Dot Pitch : 0.98 (W) x 1.15 (L)(mm)
- Weight : TBD
To know more about all latest Products of LCD Display you can visit at www.campuscomponent.com
