Espressif Systems ESP32- C3- DevKitC-02 Development Kit - WI-2401-D

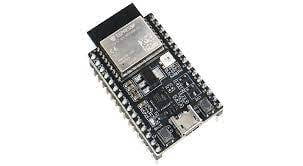

ESP32-C3-DevKitM-1 is an entry-level development board based on ESP 32-C3-DevKitM, a module named for its small size. This board integrates complete Wi-Fi and Bluetooth LE functions. Most of the I/O pins on the ESP32-C3-MINI-1 module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C3-DevKitM-1 on a breadboard.
• A complete Wi-Fi subsystem that complies with IEEE 802.11b/g/n protocol and supports Station mode, SoftAP mode, SoftAP + Station mode, and promiscuous mode.
• A Bluetooth LE subsystem that supports features of Bluetooth 5 and Bluetooth mesh
• State-of-the-art power and RF performance
• 32-bit RISC-V single-core processor with a four-stage pipeline that operates at up to 160MHz
Get the high-quality Espressif ESP32-C3-DevKitC-02 WIFI Development Board at the best price in India.
Espressif ESP32- C3- DevKitC-02 Features:-
WiFi :
- IEEE 802.11 b/g/n-compliant
- upports 20 MHz, 40 MHz bandwidth in 2.4
- GHz band
- 1T1R mode with data rate up to 150 Mbps
- Wi-Fi Multimedia (WMM)
- TX/RX A-MPDU, TX/RX A-MSDU
- Immediate Block ACK
- Fragmentation and defragmentation
Bluetooth :
- Bluetooth LE: Bluetooth 5, Bluetooth mesh
- Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
- Advertising extensions
- Multiple advertisement sets
- Channel selection algorithm #2
CPU and Memory :
- 32-bit RISC-V single-core processor, up to 160 MHz
- 384 KB ROM
- 400 KB SRAM (16 KB for cache)
- 8 KB SRAM in RTC
- Embedded flash
