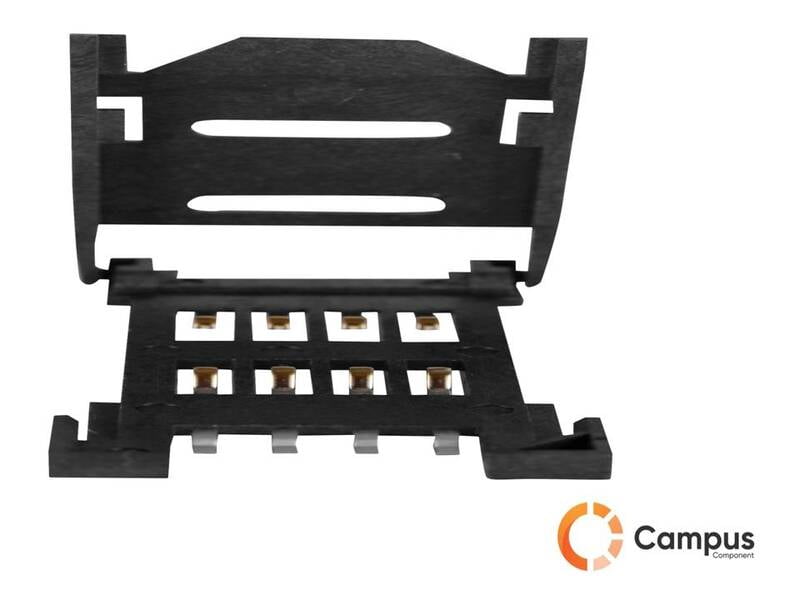

8 Pin Sim Card Holder Plastic Flap Type -SI-108-D
Non-returnable
₹22.00
SKU
SI-108-D SPQ
1 MOQ
1 Visible Manufacture Name
MICROADAPT Visible Manufacturer’s code
MA 600030 Weight (gm)
0.0035Stock Available
150 Choose Quantity
Product Details
Specifications
SIM Card 2.54mm 6P Connector H="2.5mm" Pedal-lift
MECHANICAL CHARACTERISTIC:
Durability 10,000 cycles min
ELECTRICAL CHARACTERISTIC:
Number of contacts(Optional) 8pins
Contact resistance: 50m Ω max
Insulation resistance: >1000M/500V DC
MATERIAL:
Housing: lcp, UL94V-0.Black.
Terminal: Copper Alloy, T="0.2mm
FINISH:
Terminal: 80u Min.Tin in Solder Area,3u Gold
Over 500 Min, Nickel in Contact Area
