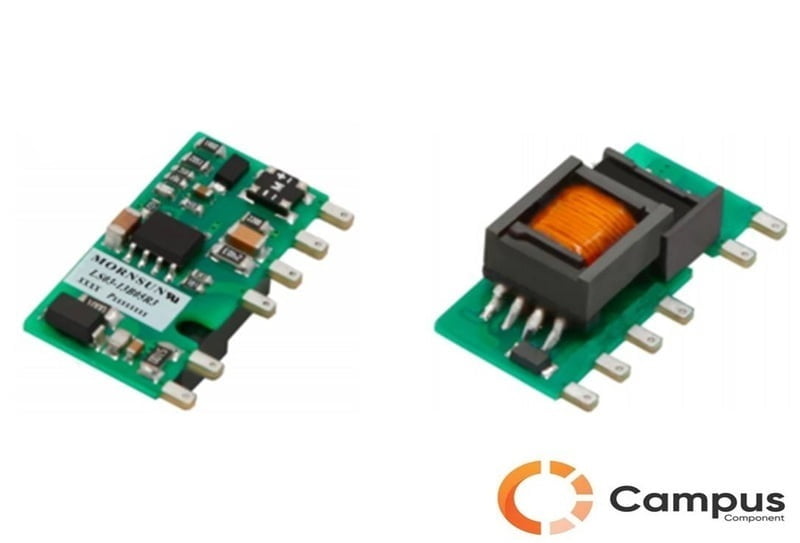

LS10-13B24R3 : 10W,24V AC-DC Converter - PO-1712-D
Non-returnable
₹250.00
SKU
PO-1712-D SPQ
20 MOQ
1 Visible Manufacture Name
MORNSUN Visible Manufacturer’s code
LS10-13B24R3 : 10W,24V Weight (gm)
0.01Stock Available
100 Choose Quantity
Product Details
LS10-13BxxR3 series is one of Mornsun’s highly efficient green power AC-DC Converter series. They feature wide input range accepting either AC or DC voltage, high reliability, low power consumption and Class II reinforced insulation. All models are particularly suitable for industrial control, electric power, instrumentation and smart home applications which have high requirement for dimension and don’t have high requirement on EMC.
- Ultra-wide 85 - 305 VAC and 100 - 430 VDC input voltage range
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range -40℃ to +85℃
- Multi application, flexible layout
- Compact size, high power density, green power
- No-load power consumption as low as 0.1 W
- Output short circuit, over-current, over-voltage protection
- Designed to meet IEC/EN61558, IEC/EN60335 standards
- IEC/EN/UL62368 safety approval
2) MECHANICAL SPECIFICATIONS :
- Dimension : 32.00 x 17.20 x 15.05 mm
- Weight : 8.2 g (Typ.)
- Cooling method : Free air convection
3) DATASHEET :
