What is Amplifier and How it Works

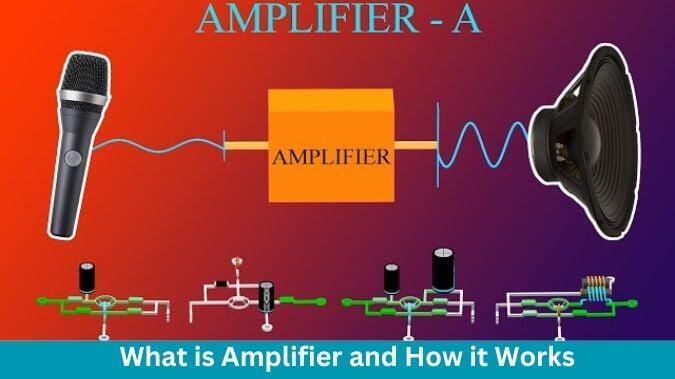

What is an Amplifier?

An amplifier is an electronic device that increases the amplitude of a signal, which may be a voltage, current, or power signal. An amplifier plays an important role in audio systems, communication systems, and in various electronic devices where signal strength needs to be enhanced.

Amplifier Circuit

An amplifier circuit is composed of electronic components designed to increase the amplitude of an input signal, such as voltage, current, or power. The circuit involves components like transistors, resistors, and capacitors (for setting gain, frequency response, and stability),a power supply, and a feedback network (used for gain control, linearity, and bandwidth tuning).

Types of Amplifier

Amplifiers are classified into various types based on their design, function, and application.

1. Voltage Amplifier

This amplifier is used for the amplification of the input voltage. They have high input impedance and moderate output impedance. Mostly, these amplifiers are used in audio systems, sensor signal conditioning, and op-amp circuits.

2. Current Amplifier

Current amplifiers are used to increase the current of the input signal. It has features like low input impedance and high output current. These amplifiers are used in motor controllers and actuator drivers.

3. Power Amplifier

These types of amplifiers have features like driving high power loads with minimal signal distortion, which is used to boost both voltage and current to deliver high power output. This type of amplifier is used in loudspeakers and RF transmission systems.

4.  Operational Amplifier

Operational amplifiers have extremely high gain and differential inputs. This is a versatile IC that can be configured as a voltage, current, or differential amplifier. It is used in signal processing, analog computation, filters, and control systems.

5. Differential Amplifier

This type of amplifier has high common-mode noise rejection, which is used to amplify the difference between two input signals. They are used in sensor interfaces, instrumentation, and op-amp input stages.

6.  RF amplifier

This amplifier is used for amplifying high-frequency signals (MHz to GHz). This amplifier is optimized for bandwidth and noise performance and used in radio transmitters, receivers, and wireless modules (Wi-FiModules, BluetoothModules).

Classification of Amplifier Based on Configuration

Amplifiers are classified based on the circuit configuration, which defines how the input and output are connected to the components.

1. Common Emitter (CE) Amplifier

In a common emitter amplifier, the emitter terminal is common to both the input and output circuits. As this amplifier offers high voltage gain and moderate current gain, this is one of the most widely used amplifier configurations. This amplifier also provides phase inversion in which the output signal is 180 degrees out of phase with the input. These amplifiers are popular in audio amplification and radio frequency circuits.

2. Common Collector (CC) Amplifier

This amplifier is also defined as an emitter follower in which the collector terminal is common to both the input and output. The common collector amplifier offers high input impedance and low output impedance, which makes it unique for impedance matching between the circuits. It is widely used as a buffer stage as it offers significant current gain.

3. Common Base (CB) Amplifier

In a common-base amplifier, the base terminal is grounded and common to both the input and output. As they provide wide bandwidth, these are used for high impedance applications. They do not provide a phase shift between input and output.

What is Amplifier Gain and How Is It Calculated?

Amplifier gain is the ratio of the output signal to the input signal. It calculates how an amplifier effectively boosts a signal in terms of voltage, current, or power. If the gain is higher, then the signal strength is also great.

Voltage Gain

 Voltage Gain = Vout / Vin

 Where :

 Vout = Output voltage

 Vin = Input Voltage

Voltage Gain in Decibels (dB):

 Voltage Gain (dB)=20×log10​(Vin/​Vout​​)

Current Gain:

 Current Gain =  Iout / Iin

 Where:

 Iout = Output current

                      Iin = Input current

Key Components of An Amplifier Circuit

The amplifier circuit relies on several key components, each playing a vital role in signal amplification:

1. Active Components

A transistor controls the flow of current or voltage and magnifies the input signal.

Op-amps are used for voltage amplification, filtering, and buffering.

2. Passive Components

Resistors are used to control current flow, set the gain of the amplifier, and establish the biasing conditions for transistors or op-amps.

Capacitors are used for coupling, decoupling, and frequency response control.

Inductors are used in RF (Radio Frequency) and high-frequency amplifier circuits to tune circuits and filter signals.

3. Power Supply

It is used to provide the energy required for the amplifier to function.

4. Feedback Network

In many amplifier designs, a feedback loop is created using resistors and capacitors, which is used to control the gain, stability, bandwidth, and linear operation of the amplifier.

5. Load

Load is what the amplifier drives, i.e., speakers, sensors, and actuators.

How Does an Amplifier Work?

The working of an amplifier is explained in the following stages:

1. Signal Reception

Firstly amplifier receives an electrical signal from a source such as a microphone, sensor, antenna, or audio player.

2. Biasing and Stabilization

For operating correctly, the component of the amplifier (transistor or op-amp) needs to be set at a specific operating point, which is achieved using biasing resistors and capacitors to ensure stability and linear performance without distortion.

3. Amplification

Components like BJT, MOSFET, or operational amplifier use the input signal to control a much larger flow of energy from the power supply.

4. Signal Shaping and Feedback Control

To improve stability and minimize distortion, amplifiers use feedback mechanisms to control gain.

5. Output

Finally, the amplified signal is sent to the output to drive the intended load, whether it's a loudspeaker, RF antenna, or microcontroller input.

Application of an Amplifier

1. Audio systems

Amplifiers are crucial in home theaters, music systems, headphones, and public address (PA) systems.

2. Communication Systems

In radio, television, and satellite communication, amplifiers are used to boost signals for transmission and reception.

3. Medical Equipment

Amplifiers are important in medical diagnostic devices like ECG (Electrocardiogram) and EEG (Electroencephalogram) machines.

4. Sensor Signal Conditioning

Instrumentation amplifiers are used to amplify sensor outputs in industrial automation, environmental monitoring, automotive systems, and embedded systems, ensuring accurate data collection and processing.

5. Wireless Communication Modules

Amplifiers play a major role in Wi-Fi, Bluetooth, and IoT modules by ensuring that transmitted signals have sufficient strength and that received signals are clear enough for reliable processing.

Frequently Asked Questions

1. What is the main function of an amplifier?

The main function of an amplifier is to increase the strength of a weak input signal without altering its original characteristics.

2. What is the gain in amplifier circuits?

Gain in amplifier circuits is the ratio of the output signal to the input signal, indicating how much the amplifier increases the signal's strength.

3. What is the difference between a voltage amplifier and a power amplifier?

A voltage amplifier boosts the voltage level of a signal, while a power amplifier increases both the voltage and current to drive high-power loads.

4. What are operational amplifiers used for?

Operational amplifiers are used for signal amplification, filtering, mathematical operations, and voltage buffering in electronic circuits.

5. Can amplifiers work with digital signals?

Yes, amplifiers can work with digital signals by boosting their voltage levels without distorting the digital waveform.

6. What is the difference between analog and digital amplifiers?

Analog amplifiers continuously amplify varying signals, while digital amplifiers process and amplify signals using discrete digital switching techniques.

7. What is the difference between single-stage and multi-stage amplifiers?

A single-stage amplifier uses one amplifying device to boost a signal, while a multi-stage amplifier connects multiple amplifying stages for greater gain and improved performance.
