About Allystar
A globally popular private enterprise, Allystar has nine years of experience in the field of manufacturing electronic components. The company's current areas of expertise are in technology hardware and electrical/electronic manufacturing. Sun Zhong Liang is the General Manager of the company. Its main office is in Shenzhen, Guangdong Province, China. There are between 1 and 25 staff. The range of Allystar's yearly income is between 5.0 and 25 million.

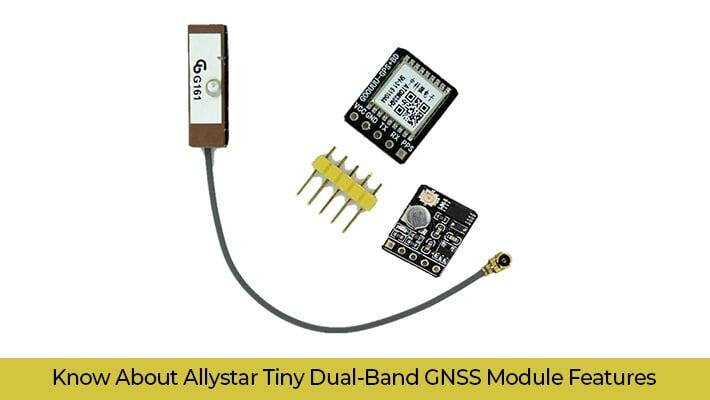

Know About Allystar Tiny Dual-Band GNSS Module Features
Two of the newest items from Chinese chipset manufacturer Allystar are the TAU1202/TAU1205 dual-band multi-GNSS modules.
Along with Galileo, they both support GPS, QZSS, and BDS. TAU1202 is also created to communicate with the IRNSS constellation, whilst TAU1205 is intended to detect signals from the GLONASS constellation (NavIC). On an Allystar Cynosure III GNSS chipset, the two modules have an integrated surface acoustic wave (SAW) filter and low-noise amplifier. As a result, TAU1202 and TAU1205 use as little as 40 mA of power and can guarantee steady performance even in the presence of weak signals. The modules offer a variety of purposes, such as asset or vehicle tracking, and are a beneficial addition to the mass market for navigation as a result.
Allystar Technology Co. Ltd. 's TAU-0707 is the smallest multi-band multi-GNSS module available. Within its 7.6 x 7.6 millimeter frame, the TAU-0707 series module covers all civil bands and the main GNSS constellations (GPS, Galileo, GLONASS, BeiDou, QZSS, and IRNSS) (L1, L2, L5, L6).
The Allystar GNSS TAU-0707 series module, according to Shi Xian Yang, marketing manager for Allystar, is the newest addition to the business's GNSS portfolio. It is a simultaneous multi-band, multi-GNSS receiver integrated with a Cynosure III single-die standalone positioning chipset that provides multi-frequency measurements to enhance positioning accuracy and simplify integration for external applications.
Additionally, Allystar high precision gnss module offers the TAU-1010 series module with a built-in low-noise amplifier, which gives the module better RF sensitivity and remarkable acquisition and tracking ability even in weak signal areas. Allystar provides two modules to completely support all civil signals on the L5 band for the standalone market in light of the increasing number of satellites that support L1/L5 transmissions. Due to the increased chipping rate of L5 signals compared to L1 C/A coding, the TAU1206-0707 and TAU1205-1010 are anticipated to perform better in multipath mitigation.
The integrated 26-MHz temperature-compensated crystal oscillator on the Allystar TAU series module provides higher accuracy, while the module's dedicated 32-KHz real-time clock oscillator reduces the time to first fix. Its exceptionally low power consumption, at less than 40 mA, is based on the Cynosure III GNSS chipset's 40-nm manufacturing techniques.
According to the company, engineering samples and a reference design of the Allystar TAU-0707 and TAU-1010 series modules will be available in April. Allystar provides two modules to completely support all civil signals on the L5 band for the standalone market in light of the increasing number of satellites that support L1/L5 transmissions. Due to the increased chipping rate of L5 signals compared to L1 C/A coding, the TAU1206-0707 and TAU1205-1010 are anticipated to perform better in multipath mitigation.
FEATURES
ALLYSTAR high sensitivity solution
Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN)
Support GPS, BEIDOU, GALILEO and QZSS
Embedded an active antenna supervisor
Built-in DC/DC converter to save power
SMD type; RoHS compliant
Support up to 72-channel GNSS
Fast TTFF at low signal level
Support 1PPS output
Built-in additional LNA and SAW filter.
Small form factor 10.1 x 9.7 x 2.2 mm
IATF 16949 quality control
SPECIFICATION
Satellite System: GPS + BEIDOU+ GALILEO + QZSS
Power (mA): 29.5mA
Interface: UART
Input Voltage: 3.0V - 3.6V
VB (uA): 13uA
Operating Temp (°C): -40 ~ 85
Dimension (mm): 10.1 x 9.7 x 2.2 mm
APPLICATIONS
Personal positioning and navigation
Marine navigation
Automotive navigation, model aircraft navigation
When you need to determine the heading of a system that is stationary or experiencing non-accelerating conditions, TAU1206-0707 and TAU1205-1010 can be crucial or beneficial. In order to determine the heading, you place these two GPS receivers on a car.
This is crucial for automobiles that might be metallic and cause magnetometer interference. Consequently, you cannot use the magnetic heading of the North. This is significant for stationary vehicles or systems that need precise heading information. This is important or useful when you need to figure out the heading of a stationary system or undergoing non-accelerating conditions. Allystar GNSS or Allystar Tiny Dual-Band GNSS Modules are high-precision GNSS modules that have been a major success for their suitability for various applications including personal positioning and navigation, marine navigation, automotive navigation, and model aircraft navigation. If you are looking for electronic components by Allystar, reach out Campus Component today!
