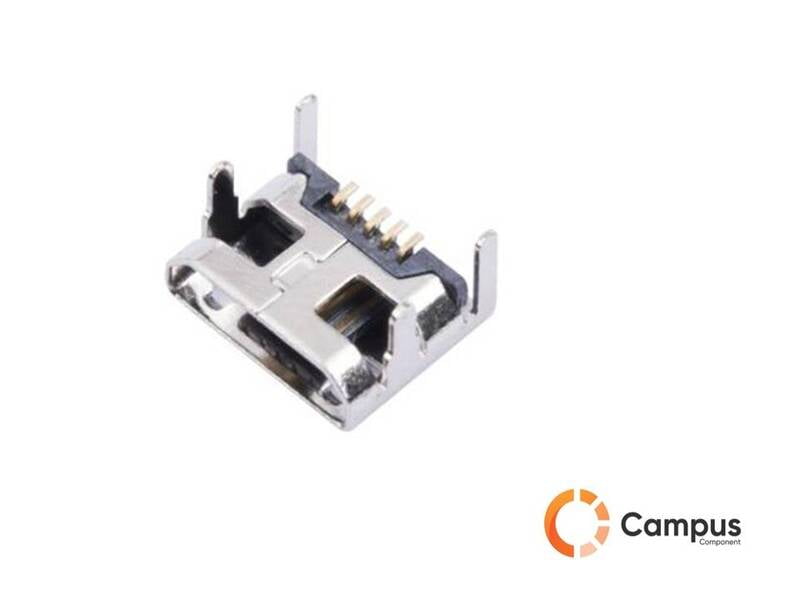

CONN RCPT 5POS MICRO USB SMD KLS1 - CO-0-D
₹5.00
SKU
CO-0-D SPQ
100 MOQ
100 Visible Manufacture Name
KLS Electronic Visible Manufacturer’s code
KLS1-4244Stock Available
1200 Choose Quantity
Product Details
Material
Housing:Hing Temperature Thermoplastics,
UL94V-0 LCP,Black.
Contact:Copper Alloy C5191.
Shell:Copper Alloy C2680.
Finish:
Contact:Plated Gold In Mating Area;
Tin On Solder Talls.
Shell:Nickel Plating.
Electrical:
Current Rating:1.0A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:50mΩ Max.
Dielectric Withstanding Voltage:
300 V AC AT Sea Level.
Insulation Resistance:100MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.0kgf Max.
Unmated Force:0.7kgf Min.
Terminal Retention:0.5kgf Min.
