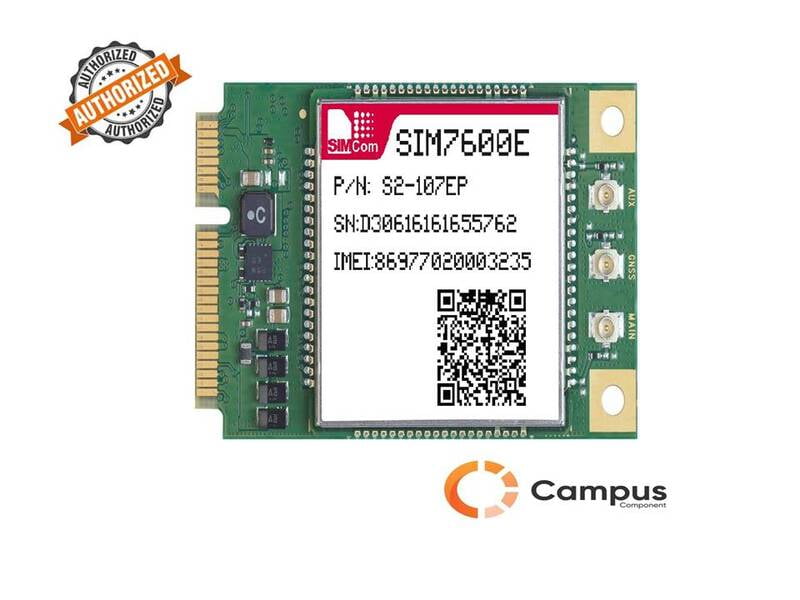

SIM7600E PCIE Module-WI-309-D
Non-returnable
₹2,550.00
Out of stock
Product Details
FOR SIMSIM7600E PCIE
General features
• TDD-LTE B38/B40/B41
• FDD-LTE B1/B3/B5/B7/B8/B20
• WCDMA/HSDPA/HSPA+ B1/B5/B8
• GSM/GPRS/EDGE 900/1800 MHz
• Control Via AT Commands
• Supply voltage range: 3.4V~ 4.2V
• Operation temperature: -40? to +85?
• Dimension: 30*30*2.9 mm
• Weight: 5.5g
• GNSS gpsOne Gen 8B;standalone;assisted,XTRA
• FDD-LTE B1/B3/B5/B7/B8/B20
• WCDMA/HSDPA/HSPA+ B1/B5/B8
• GSM/GPRS/EDGE 900/1800 MHz
• Control Via AT Commands
• Supply voltage range: 3.4V~ 4.2V
• Operation temperature: -40? to +85?
• Dimension: 30*30*2.9 mm
• Weight: 5.5g
• GNSS gpsOne Gen 8B;standalone;assisted,XTRA
Specifications for Data transfer
• LTE CAT1
- Uplink up to 5Mbps
- Downlink up to 10Mbps
• HSPA+
- Uplink up to 5.76 Mbps
- Downlink up to 42 Mbps
• UMTS
- Uplink/Downlink up to 384Kbps
• EDGE Class
- Uplink/Downlink up to 236.8Kbps
• GPRS
- Uplink/Downlink up to 85.6Kbps
- Uplink up to 5Mbps
- Downlink up to 10Mbps
• HSPA+
- Uplink up to 5.76 Mbps
- Downlink up to 42 Mbps
• UMTS
- Uplink/Downlink up to 384Kbps
• EDGE Class
- Uplink/Downlink up to 236.8Kbps
• GPRS
- Uplink/Downlink up to 85.6Kbps
Other features
• USB Driver for Microsoft Windows
2000/XP/Vista/Win7/Win8/Win10
• USB Driver for Windows CE
• USB Driver for Linux /Android
• RIL supporting for Android/Windows CE
• Automatic installation for windows
• Firmware update via USB
• TCP/IP/IPV4/V6 Multi-PDP,MT PDP
• FTP/FTPS/HTTP/HTTPS/DNS
• DTMF
• MBIM to Win8
• Source code of the PC manager of the device for
reference
2000/XP/Vista/Win7/Win8/Win10
• USB Driver for Windows CE
• USB Driver for Linux /Android
• RIL supporting for Android/Windows CE
• Automatic installation for windows
• Firmware update via USB
• TCP/IP/IPV4/V6 Multi-PDP,MT PDP
• FTP/FTPS/HTTP/HTTPS/DNS
• DTMF
• MBIM to Win8
• Source code of the PC manager of the device for
reference
