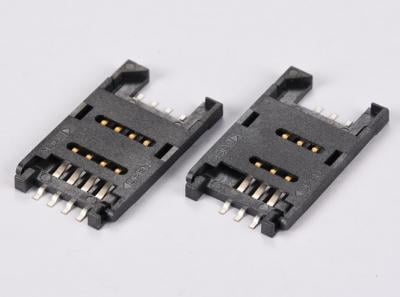

Double SIM Card Connector SIM002A - SI-2342-D
₹10.00
SPQ
1 MOQ
1 Visible Manufacture Name
KLS Electronics Visible Manufacturer’s code
L-KLS1-SIM2-002A-8P-H3.0-RStock Available
601 Choose Quantity
Product Details
Description:-
6P & 8P SIM Card Connector Hinged type,H2.8mm
Material:
Housing Material: LCP UL94V-0
Contact Material: Bronze
Contact Area:3u" Gold
Soldering Area:100u" Tin
Package: Tape and Reel Package
Electrical Characteristics:
Voltage rating: 100V AC
Current Rating: 3.0A Max
Withstand voltage: 500V AC/1Minute
Insulation resistance: ≥5000ΜΩ
Contact resistance: ≤20mΩ
Life: ＞5000 Cycles
Operating Temperature: -45ºC~+105ºC
Attachment:-
