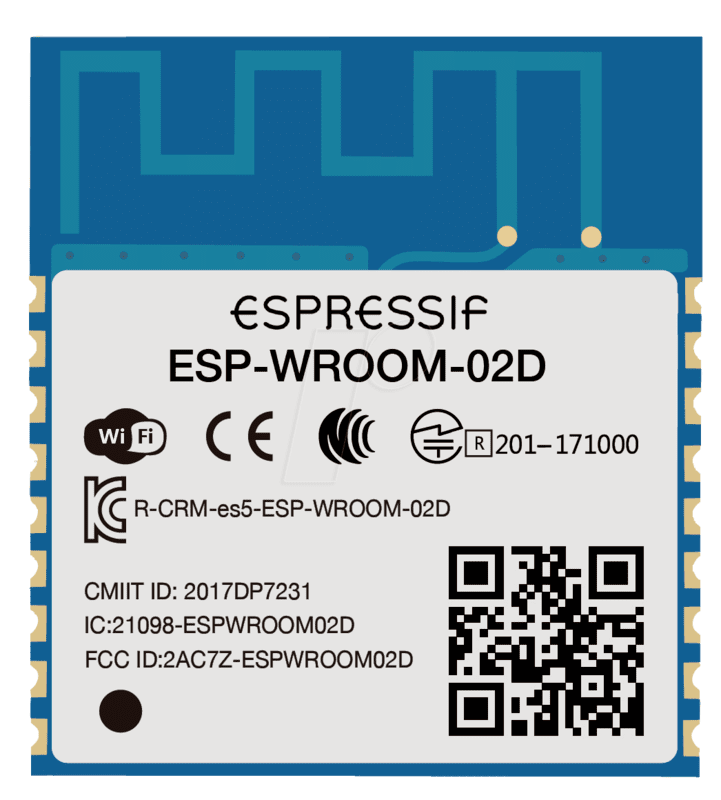

ESP WROOM 02D 2mb - WI-445-D
₹150.00
SKU
WI-445-D SPQ
650 MOQ
1 Visible Manufacture Name
Espressif Systems Visible Manufacturer’s code
ESP-WROOM-02D Weight (gm)
0.0061kgStock Available
700 Choose Quantity
Product Details
ESP-WROOM-02D 2mb are ESP8266EX-based modules developed by Espressif. Compared to ESP-WROOM-02, the RF performance of ESP-WROOM-02D are optimized. ESP-WROOM-02U and ESP-WROOM-02D use a 26-MHz crystal oscillator. The accuracy of the crystal oscillator should be ±10 PPM. When using the download tool, please select the right type of crystal oscillator. In circuit design, capacitors C1 and C2 which connect to the earth are added to the input and output terminals of the crystal oscillator respectively. The values of the two capacitors can be flexible, ranging from 6 pF to 22 pF, however, the specific capacitive values depend on further testing of, and adjustment to, the overall performance of the whole circuit. Normally, the capacitive values of C1 and C2 are within 10 pF for the 26-MHz crystal oscillator.
Get the high-quality ESP WROOM 02-D 2Mb WIFI Module at the best price in India.
ESP WROOM 02D 2mb Specification:-
| Antenna Type | Integrated, Trace |
| Current - Receiving | 50mA ~ 56mA |
| Current - Transmitting | 120mA ~ 170mA |
| Data Rate | 72.2Mbps |
| Frequency | 2.4GHz ~ 2.5GHz |
| Memory Size | 4MB Flash, 50kB RAM |
| Modulation | 64-QAM, BPSK, CCK, OFDM |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 18-SMD Module |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Power - Output | 20.5dBm |
| Protocol | 802.11b/g/n |
| RF Family/Standard | WiFi |
| Sensitivity | -98dBm |
| Serial Interfaces | ADC, GPIO, I²C, I²S, SPI, PWM, UART |
| Utilized IC / Part | ESP8266EX |
| Voltage - Supply | 2.7V ~ 3.6V |
To know more about all latest Products of ESP8266 ESP-12F WIFI MODULE you can visit at www.campuscomponent.com
