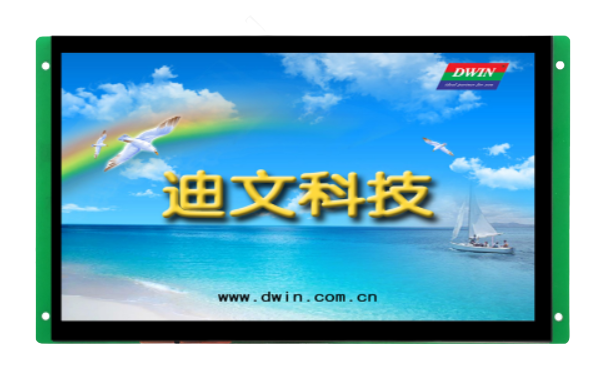

10.1'' DWIN LCD Capacitive Display Module DMG10600C101-03WTC - LC-2852-D
₹6,450.00
SPQ
1 MOQ
1 Visible Manufacture Name
DWIN Visible Manufacturer’s code
DMG10600C101-03WTC Weight (gm)
0.545kgStock Available
20 Choose Quantity
Product Details
Color display module DMG10600C101-03WTC Feature:-
- No/Resistive/Capacitive touch screen Optional;
- Based on self-designed T5L ASIC, 10.1 Inches, 16.7M Colors, 1024*600 Pixel TFT LCD;
- 8Pin_2.0mm connection wire,TTL/COMS available;
- Download via SD card or on-line serial port;
- Dual Development System: DGUS II/ TA(Instruction set);
- No coding skills required, easy-to-use DWIN DGUS V7.6 GUIs Development;
- Net Weight: DMG10600C101_03WN:501g / DMG10600C101_03WTR: 530g / DMG10600C101_03WTC:545g
- Widely used witd Arduino,STM32,Microchip ,ESP8266 and so on
Hardware and Interface:-
To know more about all latest Products of LCD/LED Display you can visit at www.campuscomponent.com
