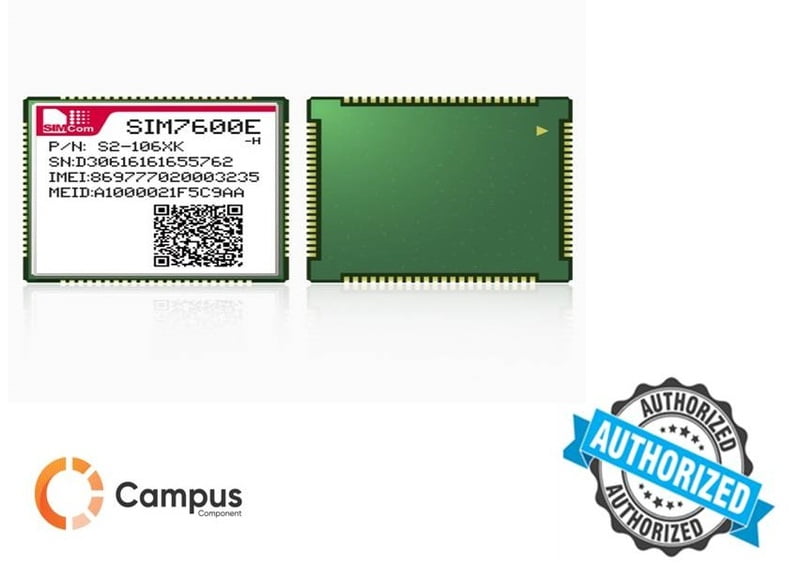

SIMCOM SIM7600E-H- (4G Module)-WI-242-D
The SIM7600 series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600-H series modules. Meanwhile the SIM7600 series integrates main industrial standard interfaces,with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
The SIM7600E-H is Multi-Band LTE-TDD/LTE-FDD/HSPA+ and GSM/GPRS/EDGE module solution in a SMT type which supports LTE CAT4 up to 150Mbps for downlink data transfer. It has strong extension capability with rich interfaces including UART, USB2.0, I2C, GPIO etc. With abundant application capability like TCP/UDP/FTP/FTPS/HTTP/HTTPS/DNS, the module provides much flexibility and ease of integration for customers application.
SIM7600E-H Features:-
Power supply Single supply voltage : 3.4~4.2V
Power saving Current in sleep mode : <5mA
Transmitting power :
GSM/GPRS power class :
- EGSM900: 4 (2W)
- DCS1800: 1 (1W)
EDGE power class:
- EGSM900: E2 (0.5W)
- DCS1800: E1 (0.4W)
UMTS power class:
- WCDMA :3 (0.25W)
Data Transmission Throughput :
- GPRS multi-slot class 12
- EDGE multi-slot class 12
- UMTS R99 speed: 384 kbps DL/UL
- HSPA+: 5.76 Mbps(UL), 42 Mbps(DL)
- TD-HSDPA/HSUPA: 2.2 Mbps(UL), 2.8 Mbps(DL)
- LTE CAT 1: 10 Mbps(DL)
- LTE CAT 1: 5 Mbps(DL)
- LTE CAT 4 :150 Mbps (DL)
- LTE CAT 4 :50 Mbps (UL)
Antenna :
- GSM/UMTS/LTE main antenna.
- UMTS/LTE auxiliary antenna
- GNSS antenna
GNSS :
- GNSS engine (GPS, GLONASS)
SMS :
- MT, MO, CB, Text and PDU mode
- SMS storage: USIM card or ME(default)
- Transmission of SMS alternatively over CS or PS.
Audio feature:
- Support PCM interface
- Only support PCM master mode and short frame sync
- 16-bit linear data formats
- LCC1 form factor with abundant interfaces
- Suitable for LTE, UMTS and GSM networks with global coverage
- Abundant software functions: FOTA, LBS, TLS, VoLTE
- Multi-constellation GNSS receiver support
- AT commands of the SIM7600 series are compatible with the SIM7500/SIM7600-H series modules
