SIM39EAR-WI-475-D
Non-returnable
₹950.00
SKU
WI-475-D SPQ
400 MOQ
1 Visible Manufacture Name
SIMCom Visible Manufacturer’s code
SIM39EAR Weight (gm)
0.01Stock Available
1200 Choose Quantity
Product Details

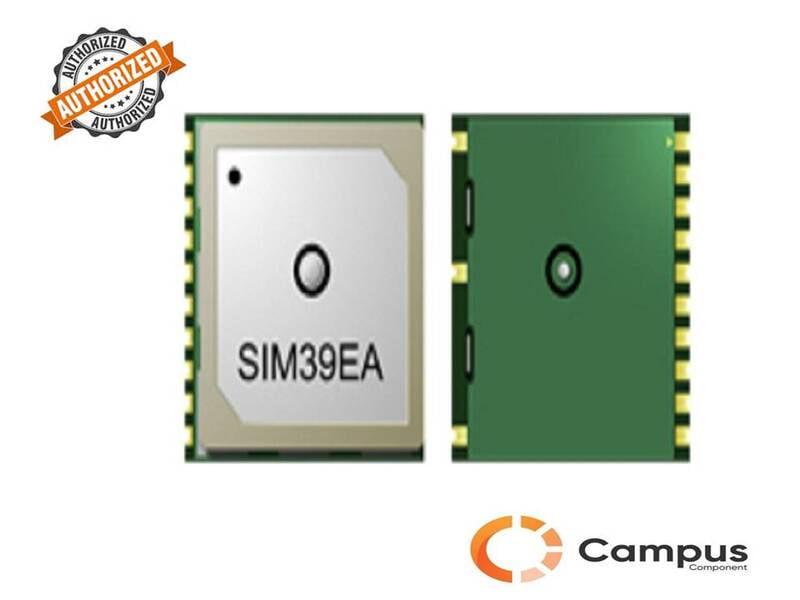

SIM39EA is an ultra-compact POT (Patch on Top) GPS module. With built-in LNA and Patch Antenna, SIM39EA do not need an extra antenna. SIM39EA can track as low as -165dBm signal even without network assistance. SIM39EA has excellent low power consumption characteristic (acquisition 32mA, tracking 27mA). SIM39EA supports various location and navigation applications, including autonomous GPS, QZSS, SBAS ranging (WAAS, EGNOS, GAGAN, MSAS), and A-GPS
. Key Feature
- GPS receiver, supports QZSS, SBAS ranging, supports WAAS/EGNOS/MSAS/GAGAN
- 22 tracking/66 acquisition-channel, up to 210 PRN channels
- Small footprint: 16 x 16 x 6.2mm, 13-pin LCC package
- 12 multi-tone active interference cancellers and jamming elimination z Indoor and outdoor multi-path detection and compensation
- Max NMEA update rate up to 10 HZ
Advanced software features
1. EASY self-generated orbit prediction
2. EPO/HotStill orbit prediction 3. AlwaysLocate advanced location awareness technology Pulse-per-second (PPS) GPS time reference
1 . Adjustable duty cycle
2. typical accuracy: ±10ns
- Interface UART
- Operating temperature: -40 ~ +85ºC
- Accuracy 2.5m CEP z RoHS compliant The module provides complete signal processing from antenna input to host port in either NMEA messages. The module requires 2.8V~4.3V power supply.
