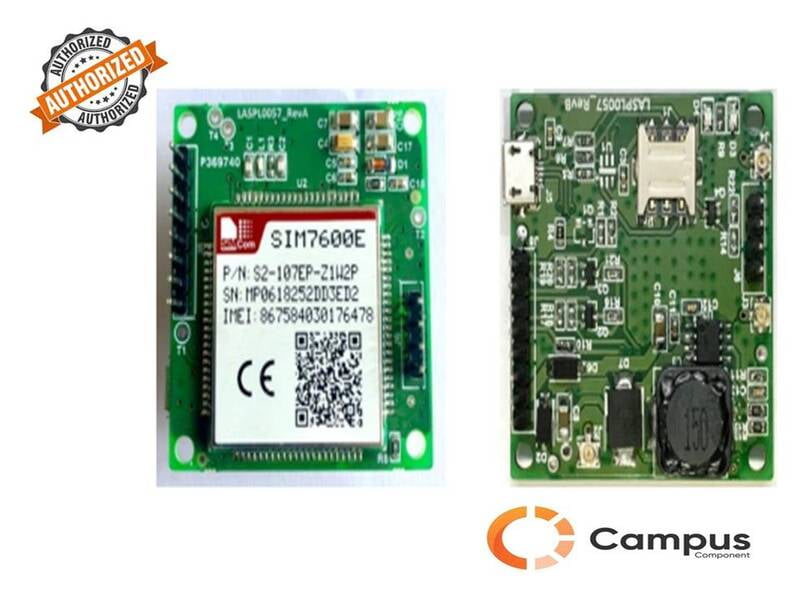

SIM7600E LTE Mini Modem-WI-516-D
Out of stock
The SIM7600E 4G modem, a high quality Industrial grade product from Campus Component, which is professionally designed with RF impedance matching and robust power design to work with input DC voltage as low as 5V and high up to 28V. It is built with Multi-Band LTE-TDD/LTE-FDD/HSPA+ and GSM/GPRS/EDGE module which supports LTE CAT1 up to 10Mbps downlink data transfer. The SIM7600E Modem is having internal TCP/IP stack to enable you to connect with internet via 4G/GPRS. It is suitable for Tracking, SMS, Voice as well as DATA transfer application in M2M interface and vehicle tracking applications.
• Input Voltage : 5V to 24V, Reverse Polarity Protection.
• High Efficient Switching Regulator
• On Board Nano SIM Card Connector
• Works with 2G/3G/4G Networks
• Provision of 2 ADC Input, 0-1.8V
• Male header for TTL
• UFL Connector for GSM & GPS Antenna
• Power & Network LED Indicator
• On board Micro USB Connector
• 45 x 45 X 22 mm PCB Size
