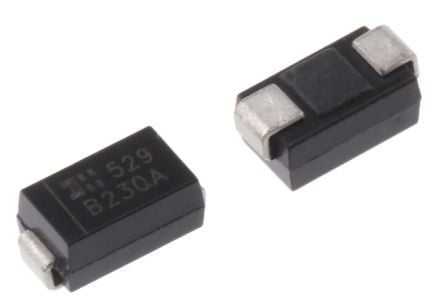

B230A 13 F Schottky Rectifier Diode-DI-341-D
Non-returnable
₹7.00
Out of stock
SPQ:1,MOQ:1,Product Package:
Product Details
B230A 13 F Schottky Rectifier Diode Features:-
- Guard Ring Die Construction for Transient Protection
- Ideally Suited for Automated Assembly
- Low Power-Loss, High Efficiency
- Surge Overload Rating to 50A Peak
- For Use in Low-Voltage, High-Frequency Inverters, Free-Wheeling, and Polarity Protection Application
- High-Temperature Soldering: +260°C/10 Second at Terminal
Get the high-quality B230A 13 F Schottky Rectifier Diode at the best price in India.
B230A 13 F Schottky Rectifier Diode Mechanical Data:-
- Case: SMA/SMB
- Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208
- Polarity: Cathode Band or Cathode Notch
- Weight: SMA 0.064 grams (Approximate) SMB 0.093 grams (Approximate)
To know more about all latest Products of Schottky Diode you can visit at www.campuscomponent.com
