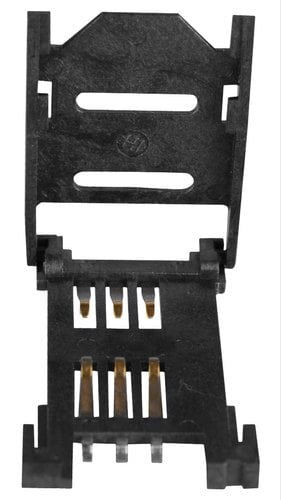

6 Pin Sim Card Holder Plastic Flap Type -SI-104-D
Non-returnable
₹12.00
Out of stock
Product Details
6 Pin Sim Card Holder Plastic Flap Type General characteristics:
- Dimensions:29.90L*17.35W*2.50/2.80Hmm
- Weight:1.0g
- Contact principle: Friction technology
- Operating position: shaft up/down/horizontal
- Mounting system: SMT(post optional)
- Durability: 5000 cycles min
Get the high-quality 6 Pin Sim Card Holder Plastic Flap Type at the best price in India.
6 Pin Sim Card Holder Plastic Flap Type Electrical characteristics :-
- Number of contacts:6pins
- Contact resistance:50MΩ typical,1000 MΩ max
- Insulation resistance:>1000 MΩ/500V DC
6 Pin Sim Card Holder Plastic Flap Type Solderability:-
- Wave: not applicable
- Vaporphase: 215oC30sec Max
- IR reflow: 230oC,15sec Max
- Manual soldering: 360oC,3sec.Max
6 Pin Sim Card Holder Plastic Flap Type Environmental characteristics:-
- Operating temperature-40oC +85oC
- Operating humidity:10%≈+95%RH
- Storage temperature:-40oC≈+85oC
- Storage humidity:10%≈95%RH
- Thermal shock: -40oC≈+85oC,5cycles
- Damp Heat:40oC,90%RH,10days
- Salt-mist:35oC,5%Nacl,24H
To know more about all latest Products of PCB Terminal Blocks you can visit at www.campuscomponent.com
Attachment:-
1.6Pin Sim Card Holder Plastic Flap Type datasheet
